Brand Name : | KHOME |
Model Number : | KHPCH |
Certification : | ISO, CE, SGS, PVOC |
Price : | USD2050/set~USD2100/set |
Payment Terms : | L/C, T/T |
Supply Ability : | 8000 square meters/month |
Delivery Time : | 30 days |
Portable Knockdown House For Mining Camp

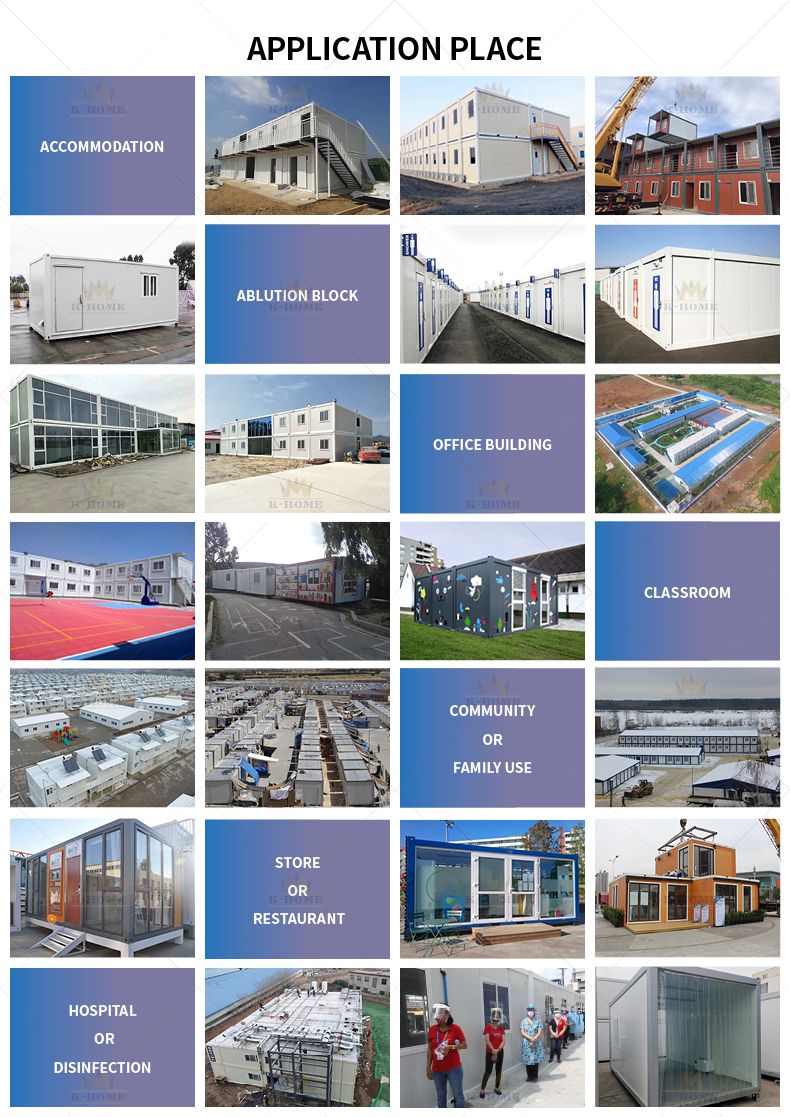

Our prefab container house has wide applications:
Labour Quarters
Kitchen Containers
Dining and Entertainment Containers
Laundry and Ablution Containers
Office Units
Medical Clinics
Detail Specification of Portable Container House
Specification: Standard Container | Length(mm) | 6000 |
Width(mm) | 3000 | |
Height(mm) | 2800 | |
Roof Type | Flat Roof with drainpipes design | |
Storey | ≦3 | |
Structure | Corner Column | Galvanized Cold Roll Steel, Material:Q235 |
Roof Beam | Galvanized Cold Roll Steel, Material:Q235 | |
Roof Purlin | Galvanized Cold Roll C Steel, Material:Q235 | |
Floor Beam | Galvanized Cold Roll Steel, Material:Q235 | |
Floor Purlin | Galvanized Cold Roll C Steel, Material:Q235 | |
Metal Surface Treatment | Using powder spray painted. | |
Roof | Roof Steel Sheet | Color steel sheet, Color: White-gray |
Insulation | Glass wool, with single side aluminum foil, Class A fire rating ( Non-combustible) | |
Roof Ceiling | Color steel sheet, Color: White-gray | |
Floor | Floor Surface | PVC Floor Leather. Color:Customized |
Floor Board | MGO Board, 18mm thickness | |
Wall | Color Steel Sheet | PE Coated steel color plate |
Core Material | Rockwool (Density:50kg/m3), 50mm thickness | |
Door | Specification (mm) | W*H=950*2030 |
Material | Steel Door | |
Window | Specification (mm) | W*H=950*1100 |
Frame Material | PVC Steel | |
Glass | 0.35mm double glass | |
Electrical | Voltage | 220v-250v |
Electrical Wire | Electrical Wiring:1.5mm, 2.5mm | |
Air Breaker | High breaking miniature circuit breaker | |
Lamp | Ceiling Lamp, 24W |
Project Case
![]() |
