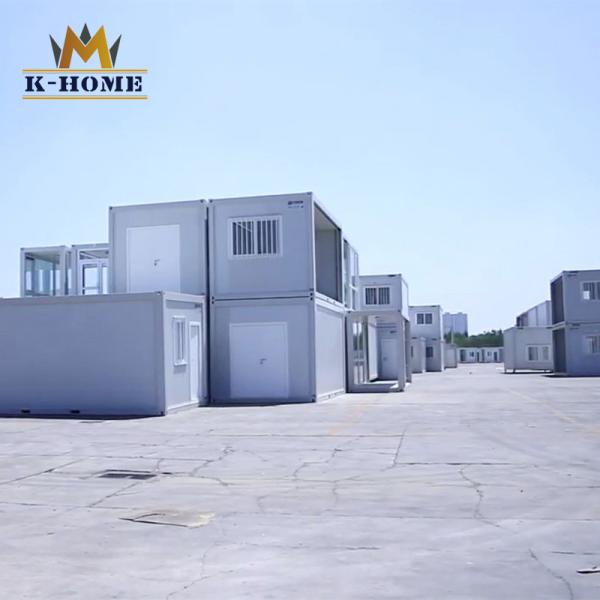

    Oilfield Prefab Camp Temporary Modular Housing

    Ask Lasest Price
    Brand Name : KHOME
    Model Number : KHCC
    Certification : CE, SGS, ISO
    Price : USD2050/set~USD2100/set
    Payment Terms : T/T, L/C
    Supply Ability : 8000 Square Meters/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Oilfield Prefab Camp Temporary Modular Housing

    Oilfield Prefab Camp Temporary Modular Housing

    Ⅰ. Introduction

    K-Home provides container camps for remote area, like oilfield, pipeline project, gas field, etc.
    K-home offers comfortable housing solutions to meet your needs.
    We can provid a turkey solution, like entertainment, dining, and fitness amenities to make a good night’s sleep a sure thing.




    Ⅱ. About our product

    ItemSpecificationPictures
    Part 1: Roof System
    1Roof PlateRoof tile is 0.5 mm thickness steel sheet;
    2Roof Purlin

    1pc 40x80mm Galvanized Square tube
    + 2pcs 40x60mm Galvanized Square tube

    + 5pcs 40x80mm Galvanized Square tube;

    3Roof Insulation50mm glass wool insulation material;
    4CeilingCeiling is 0.4 mm thickness shaped steel plate;
    Part 2: Steel Frame
    1Corner Connection Part

    Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished;

    Size: 160* 160* 160 mm (Bottom)

    &160* 160* 180 mm (Top);

    2Column

    Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;


    Size: 160* 160* 2480mm;

    3Top and Floor Long Beam

    Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;


    Size: 5680* 60* 160 mm;

    4Top & Floor Short Beam

    Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;


    Size: 2680* 60* 160 mm;

    5BoltHigh strength galvanized steel bolt;
    Part 3: Floor System
    1Floor PurlinMaterial: 10pcs 40x80mm Galvanized Square tube
    +4pcs 40x80mm Galvanized Square tube
    +2pcs 30x50mm Galvanized Square tube;
    2Floor Panel18 mm MGO board
    3Wall Panel

    50 mm rock wool sandwich Panel;

    Outside color is light silver gray (0.38mm thickness steel );
    Inside is white color steel (0.38mm thickness steel ).

    Part 4: Drainage system
    1Water drain pipe and channelWater drain pipe:
    Diameter: 50mm
    Length: 2700mm;
    Water drain channel: 90(W)x50(H)mm;
    Part 5 : Door & window system
    1Standard DoorSize: 930mm*2000mm
    Material: sandwich panel/steel door;
    2WindowSize: 930mm*1200mm
    Plastic steel single glass sliding window (including screens) With 0.35mm Double glass and strength pvc window frame/Glass Window;
    Window rail is smooth.
    Part 6: Electricity System
    1LampType: LED energy saving lamp;
    Power: 24W
    Include: Two sockets and one switch;
    Note: The socket will be equipped according to the local standard.
    Includes: electric wire and conduit;
    Use: The electric wire will be in the conduit and go through the wall panel for concealed installation.
    2Socket & Switch
    3Electric Wire
    4Air Circuit Breaker
    Part 7: Internal Decoration
    1Internal CornerMaterial: PVC;
    Includes: Vertical internal corner and horizontal internal corner.
    2Steel Plate for Internal ConnectionMaterial: Stainless Steel;
    Used on the joints between two bottom frames when different containers connected with each other.
    3Floor LeatherMaterial: PVC
    Thickness: 1.6mm
    Features: moisture proof; wear resisting;
    anti-corrosive and thermal insulation.
    Part 8: Installation Accessories
    1SealantUsed for the joints of doors and windows for better waterproof.
    2Structure AdhesiveUsed for the reinforcement and seal of the steel frames.
    3ScrewsInclude: rivets, bolts, drill tail screw;




    Ⅲ. Our Services

    Installation work
    Generally we use the following three methods to guide the installation
    1. Sending our engineer to your site, and showing the standard installation steps to local workers. The salary, visa fee, round ticket, local food, and accommodation will be responsible by your side.
    2. Training the local workers installation steps of house, and installation method of our equipped furniture.
    3. Telling them how to repair and replace the broken parts.

    Maintenance work
    Painting every 2 years to extend the lifetime of the house.
    In addition that, our engineer will give advices based on the climate and weather situation on your site.

    Warranty
    1. 15 years are the design life of our house for main structure, not include the easy broken part, such as lock, lights, sockets, switches, etc.
    2. 12 month warranty for main steel structure, and sandwich panels. Not include the harsh use environment, such as hurricane, fire hazard, flood, more than 8 grade earthquake etc. (force majeure) and human damage.
