Windproof Modular Oil Field Camp Portable Accommodation

Ask Lasest Price
Brand Name :	KHOME
Model Number :	KHPA
Certification :	CE, SGS, ISO, PVOC
Price :	USD2050/set~USD2100/set
Payment Terms :	T/T, L/C
Supply Ability :	8000 square meters/month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

Windproof Modular Oil Field Camp Portable Accommodation

Quickly Installation Portable Accommodation Windproof Modular Oil Field Camp

Ⅰ. Introduction

K-Home provide products and services to oil and gas extraction industries.

Our modular buildings are used for remote accommodation during the exploration of oil and gas, drilling.

Ⅱ. Specification of Product

Item	Specification
Part 1	Roof System
1.	Steel frame	Q235 galvanized steel structure
2.	Roof insulation	50mm glass wool insulation material
3.	Ceiling	0.4mm steel ceiling
4.	Steel sheet	0.5mm thickness steel sheet
Part 2	Floor system
1.	Steel structure	galvanized steel structure
2.	Floor board	18mm thickness fireproof MGO board
Part 3	Corner column
1.	2.3mm Shaped Galvanized steel
Part 4	Sandwich wall panel
1.	Wall panel	Outside color is light silver gray (0.38mm thickness steel ); Inside is white color steel (0.38mm thickness steel ).
Part 5	Door and Window system
1.	Door	Steel door; Size: 950*2000mm.
2.	Window	Plastic steel sliding window (including screens); With 0.35mm Double glass and strength pvc window frame; Width 930mm, height 1200mm; Window rail is smooth.
Part 6	Electric system
1.	LED light	Type: LED energy saving lamp; Power: 24W
2.	Socket & Switch	Include: Two sockets and one switch; Note: The socket will be equipped according to the local standard.
3.	Wire	Includes: electric wire and conduit; Use: The electric wire will be in the conduit and go through the wall panel for concealed installation.
4.	Terminal socket	Features: short-circuit protection; overload protection; under voltage protection.
Part 7	Accessories
1.	Sealing Strip	Used on the joint between wall panel and steel frame for better waterproof performance.
2.	Lock	Used when two containers connected with each other. As you tighten the lock, the containers will be fixed together strongly.
3.	Waterproof butyl tape	Self-adhesive
4.	Rubber strip	When there are two containers connected with each other, it is used in the joint between two containers for better fixation.
5.	Internal skirting line	Includes: Vertical internal skirting line and horizontal internal skirting line.
6.	Steel Plate for Internal Connection	Used on the joints between two bottom frames when different containers connected with each other.
7.	Structure Adhesive	Used for the reinforcement and seal of the steel frames.
8.	Sealant	Used for the joints of doors and windows for better waterproof.
9.	Screws	Include: bolts, drill tail screw, flat tap screw.

Ⅲ. Features

1. 1*40'HQ shipping container can transport 13 units (20ft) .

2. Easy to assembly 2 units within 1 day by 4 workers.

3. Easy to change the damaged part of the container.

4. Can be customized according to your actual needs.

5. Better heat insulation with rock wool/PU sandwich panels.

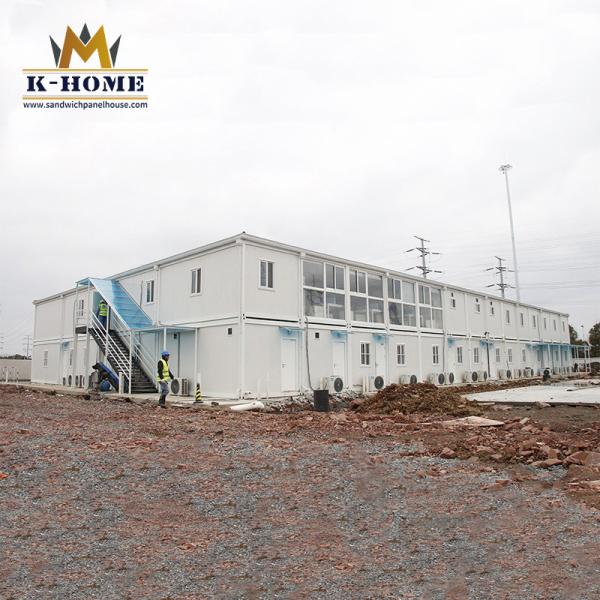

Ⅳ. Project Show
