Modern Type Portable Container Office With Accommodation Fast Build
With Modular Design
I. Introduction
The main wall material rock wool sandwich panel with color steel
plate has the following advantages:
First, lightweight, due to its lightweight, easy transportation,
easy installation, and can save construction time.
Second, environmental protection and saving, the movable room made
of color steel plate can be reused, which is environmentally
friendly and saves money, no pollution, and no noise.
Thirdly, High strength, due to the steel structure, strong bearing
capacity, compression, and bending resistance.
Fourth, the surface is smooth and easy to clean, the surface of the
color galvanized steel plate is not rough, and the corrosion
protection period is long, suitable for repeated use.
With the development of science and technology nowadays, people's
awareness of environmental protection is increasing, and the living
standard is improving, the more the color steel plate shows its own
characteristics, the activity room made of color steel plate is
more and more vital and spacious Prospects. Will be more and more
favored by more industries in society, give full play to their
advantages and benefit mankind.
II. Design description
This layout unit is designed for factories to have conference and
as an accommodation. On the first floor is the conference room that
could contain about 10 people. There is also a toilet room with a squatting toilet and a
washbasin. Beside it is the kitchen room for people to cook.
On the second floor is the dormitory with 4 bunk beds for 8 people.
This building is very suitable for people who work in a remote
area. People can also have some entertainment on the platform.
Layout information:
| 1 | Building area | 54 sqm | | 2 | Capacity | 8 people | | 3 | Bedroom | 1 | | 4 | Kitchen | 1 | | 5 | Toilet | 1 |
III. Product specification
| Part 1: Roof System (roof plate + roof purlin + roof insulation +
ceiling) | | I | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; | | Strong and corrosion resistance. | | ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square
tube + 5pcs 40x80mm Galvanized Square tube; | | Firm, strong corrosion resistance and has a long service life. | | iii | Roof Insulation | 50 mm glass wool insulation material; | | Fireproof A1 class, non-combustion. | | iv | Ceiling | The ceiling is 0.4 mm thickness shaped steel plate; Pre-coated and
color coated; | | Strong and corrosion resistance. | | Part 2: Steel Frame (Corner post + column + beam + bolt) | | I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by
machine after repeatedly polished; | | Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size: 160* 160* 2480mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 3680* 60* 160 mm; | | Size 2: 5680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. The color is
glossy and can last for a long time. | | iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 2680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | v | Bolt | High strength galvanized steel bolt; | | To fix the Corner Connection Part and beam, Corner Connection Part
and column; | | Firm, strong, and corrosion resistance. |

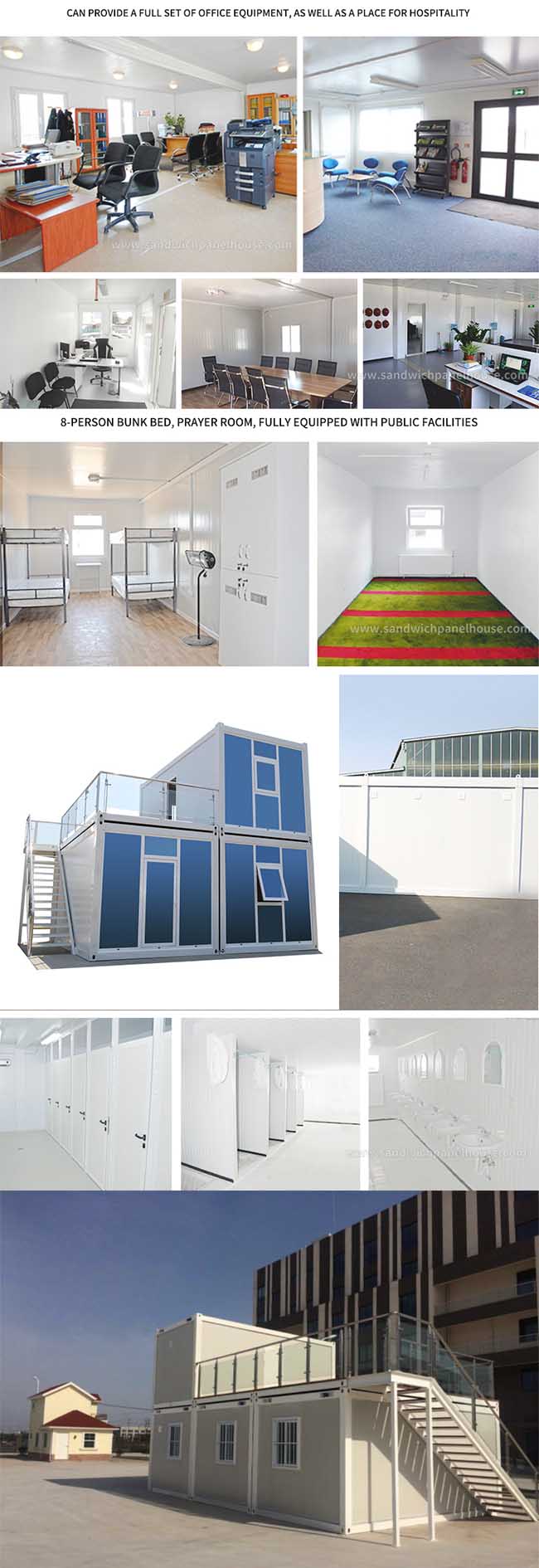

IV. Product show
V. Factory show
|
