Low Cost Containerized Temporary Apartment Building With Sandwich
Panel And Steel Structure
I. Product Introduction
The portable container house is mainly used in temporary houses
such as refugee, housing construction sites, municipal engineering
sites, railway engineering sites, highway engineering sites, and
water conservancy engineering sites. It made of light steel as steel structure and sandwich panels for
wall and roof. The insulation of the sandwich panel can be
polystyrene, polyurethane, rock wool, and fiberglass. As a
standardized construction product.
It has below main features:
1. no construction garbage caused;
2. Environment protective materials adopted, repeated use and low
cost;
3. Flexible size and easy to assemble and disassemble with elegant
appearance;
4. Safe and durable.
II. Product description
This portable sandwich panel container accommodation building is
designed to house homeless refugees. It is a two-story container building. Each floor contains 10 rooms,
each room has two single beds, a living room with sofa and tea
table, an open style kitchen with a set of dining table and 4
chairs., and a washroom with a sitting toilet, washbasin, and
shower for people to wash.

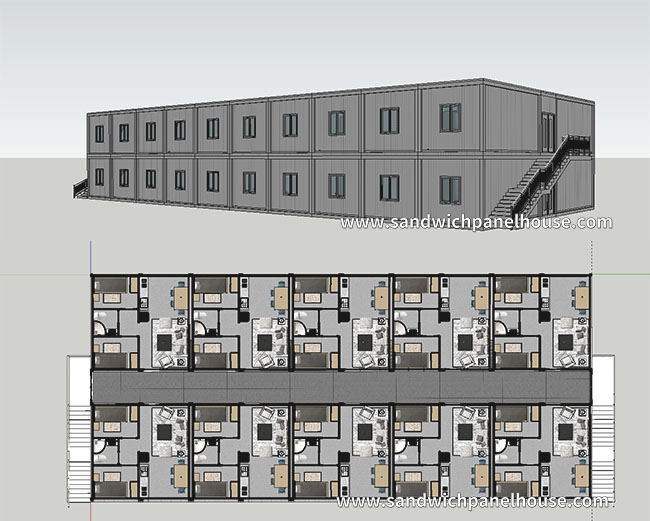

Layout information
| 1 | Building area | 909.16 sqm | | 2 | Land area | 495.30 sqm | | 3 | Capacity | 40 people | | 4 | Apartment qyt. | 20 rooms |

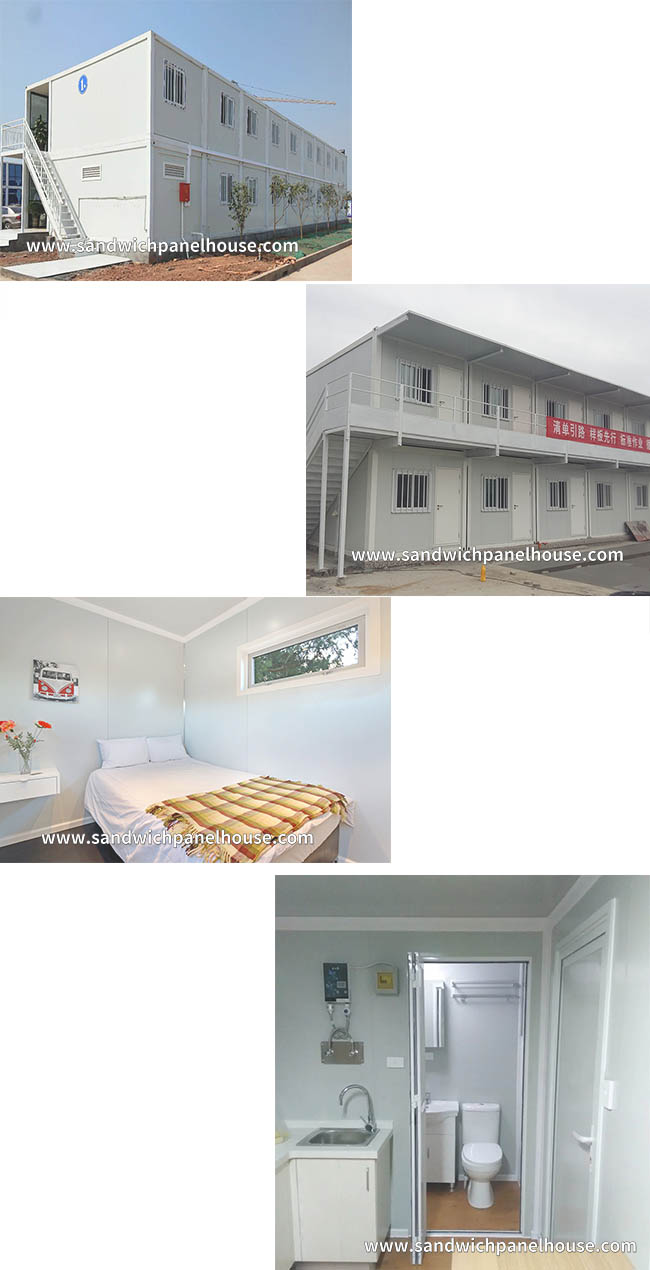

III. Product show
III. Main Specification
| Part 1: Roof System (roof plate + roof purlin + roof insulation +
ceiling) | | I | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; | | Strong and corrosion resistance. | | ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square
tube + 5pcs 40x80mm Galvanized Square tube; | | Firm, strong corrosion resistance and has a long service life. | | Part 2: Steel Frame (Corner post + column + beam + bolt) | | I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by
machine after repeatedly polished; | | Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size: 160* 160* 2480mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 3680* 60* 160 mm; | | Size 2: 5680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. The color is
glossy and can last for a long time. | | iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 2680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. |
|
