Two Storeys K Type Prefab Accommodation Strong Fireproof Rain Proof

Ask Lasest Price
Brand Name :	KHOME
Model Number :	KHPA
Certification :	CE, ISO
Price :	$35-$50 per square meter
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	30000 sqm
Delivery Time :	Depend on quantity needs

Add to Cart

Product Details
Company Profile

Two Storeys K Type Prefab Accommodation Strong Fireproof Rain Proof

Two Storeys K-Type Prefab Accommodation Strong And Fireproof For Sale

I. Product Introduction

K-type prefab house is an environment-friendly and economic prefab house. The product combines the space according to the standard module, and the components are connected by bolts, which can be easily and quickly assembled and disassembled, realizing the general, economic and environmental protection, fast and efficient construction concept of temporary building standard for factory production, supporting supply, reusable products.

It has many features:

1. Light steel structure but still strong.

2. Sandwich panel(EPS, glass wool, rock wool, PU) efficient heat insulation, water-proof, fire-resistant

3. Long usage life, could be built as daily residence houses

4. Movable and can be stacked, very flexible for design or re-design

5. Low cost but convenient for transportation, especially for sea transport

6. Fast and easy installation

II. Product description

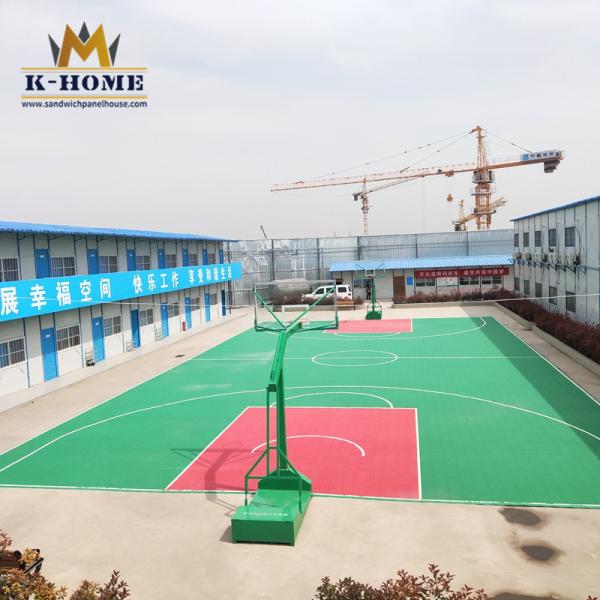

This prefab dormitory could be used for workers' accommodation or students' dormitories for temporary.

It is a two-floor prefab house building with a total area of 509 sqm.

Within 18 dormitory rooms, making it could accommodate 72-144 people in total.

Layout description

1	Building area	509 sqm
2	Capacity	72-144 people
4	Room size 1:	29.81 sqm
5	Room qty.	6 rooms
6	Room size 2:	14.91 sqm
7	Room qty.	12 rooms

III. Main material:

Wall Panel

(50mm Rock Wool sandwich panel)

Wall Panel: 50mm 50kg/m³ rock wool Sandwich Panel,( 0.40mm steel plate on both sides)；
Color is common color: White gray

Roof Panel

(50mm Rock Wool Sandwich Panel)

Roof Panel: 50mm 50kg/m³ rock wool sandwich panel (0.40mm blue steel plate on both sides)
Color is a common color: Blue

Steel Frame (Roof Truss)

Steel column: Double C80×40×1.8
Herringbone beam: C80×40×1.8,C50×40×1.8;
Horizontal beam: C80×40×1.8,C50×40×1.8;
Grade beam: C80×40×1.8;
Ring beams:C80×40×1.8:
Roof purlins: C50×40×1.8;
Lateral support: L40×3.0;
Control rod:φ8
