Expandable Prefabricated Container Kitchen And Dining Hall For
Workers With Food Storage House
I. Product Introduction
The prefabricated container house is sturdy and durable, especially
suitable for the units that frequently change the construction
site. It is composed of steel and has strong anti-seismic and
anti-deformation capabilities.
This kind of container house can be expandable and combined with
multiple container house to form different shapes and can be
beautiful like villas, and more can be composed of different sizes
for employee dormitory, management office, kitchen, dining hall,
food storage, toilet, etc., which can be moved and used at any time
without generating any operational waste, and can be recycled for
more than fifteen years, environmental protection is more
energy-efficient. The container has good sealing performance, and a
strict manufacturing process makes this kind of mobile house have
good water tightness, all-steel material, shockproof, waterproof,
windproof, fireproof, anticorrosive. The container is a whole
structure, which can be transported directly to the destination by
crane.
II. Product description
This prefabricated container camp is designed for outdoor worker
camp with a kitchen and dining hall, such as construction
sites, telecom industry, oil and gas field, etc. accommodation.

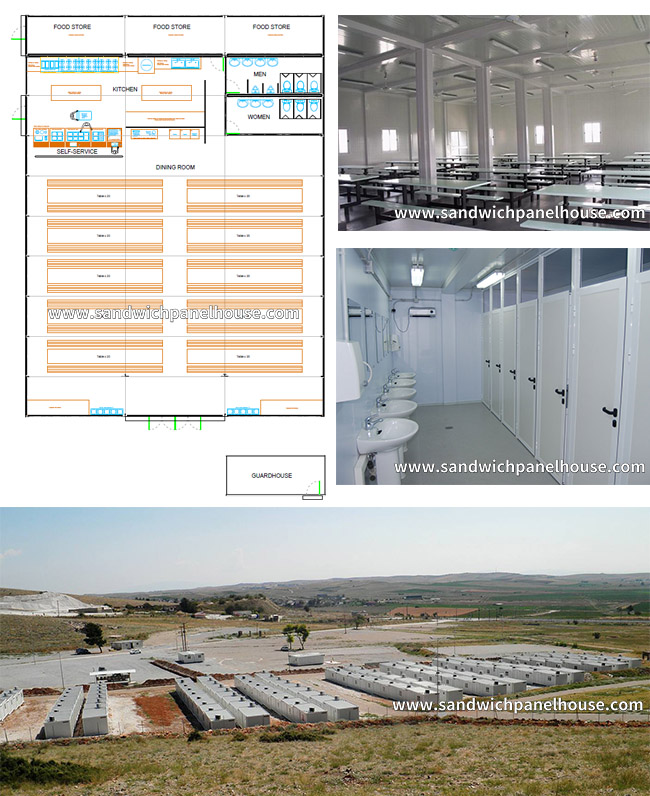

Layout description
| 1 | Building area. | 480 sqm | | 2 | Total Capacity | 400 people | | 3 | Food storeroom area | 48 sqm | | 4 | Public toilet | 2 rooms |
III. Main material
| Part 1: Roof System (roof plate + roof purlin + roof insulation +
ceiling) | | I | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; | | Strong and corrosion resistance. | | ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square
tube + 5pcs 40x80mm Galvanized Square tube; | | Firm, strong corrosion resistance and has a long service life. | | Part 2: Steel Frame (Corner post + column + beam + bolt) | | I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by
machine after repeatedly polished; | | Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size: 160* 160* 2480mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 3680* 60* 160 mm; | | Size 2: 5680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. The color is
glossy and can last for a long time. | | iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 2680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. |
