Beautiful Designed Portable Construction Office Modular Container
House With Glass Facades
I. Introduction
The Portable container house is sturdy and durable, especially
suitable for the units that doing construction works. It is composed of steel and has strong anti-seismic and
anti-deformation capabilities. This kind of house can be combined with multiple container mobile
homes to form different shapes and can be beautiful like villas,
and more can be composed of different sizes of employee dormitory,
management office, etc., which can be moved and used at any time
without generating any operational waste.
II. Design description

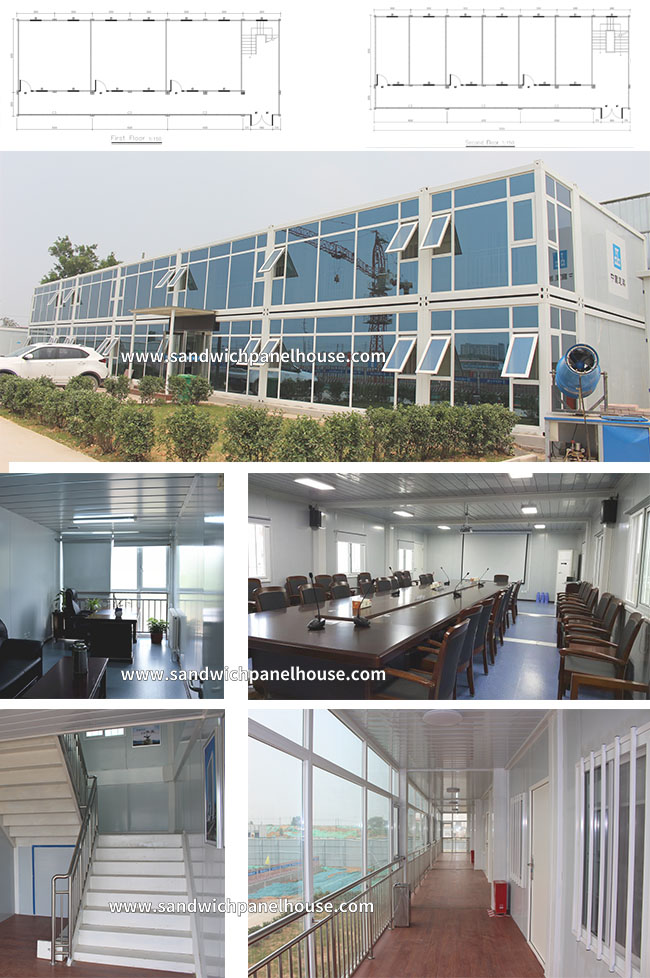

This Portable container office building can be used for
construction sites, factories, and oil & gas fields. The office
building is decorated with glass facades for all side of the
walkway container, making it looks very beautiful and much more
durable.
It is designed with 9 rooms for this building, three big rooms on
the first floor as the conference room, dining room, and toilet
room.
On the second floor, there are 6 small rooms for offices, which
could be used for different departments.
III. Layout description
| 1 | Building area | 336 sqm | | 2 | Land area | 168 sqm | | 2 | Office room qty. | 6 | | 3 | Conference room qty. | 1 | | 4 | Dining room qty. | 1 | | 5 | Toilet room qty. | 1 |
IV. Main material specification
| Part 1: Roof System (roof plate + roof purlin + roof insulation +
ceiling) | | I | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; | | Strong and corrosion resistance. | | ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square
tube + 5pcs 40x80mm Galvanized Square tube; | | Firm, strong corrosion resistance and has a long service life. | | iii | Roof Insulation | 50 mm glass wool insulation material; | | Fireproof A1 class, non-combustion. | | iv | Ceiling | The ceiling is 0.4 mm thickness shaped steel plate; Pre-coated and
color coated; | | Strong and corrosion resistance. | | Part 2: Steel Frame (Corner post + column + beam + bolt) | | I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by
machine after repeatedly polished; | | Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | | Feather: Safe, strong and corrosion resistance. | | The color is glossy and can last for a long time. | | ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size: 160* 160* 2480mm; | | Feather: Safe, strong and corrosion resistance. | | The color is glossy and can last for a long time. | | iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 3680* 60* 160 mm; | | Size 2: 5680* 60* 160 mm; | | Feather: Safe, strong and corrosion resistance. The color is glossy
and can last for a long time. | | iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 2680* 60* 160 mm; | | Feather: Safe, strong and corrosion resistance. | | The color is glossy and can last for a long time. | | v | Bolt | High strength galvanized steel bolt; | | To fix the Corner Connection Part and beam, Corner Connection Part
and column; | | Firm, strong and corrosion resistance. |
|
