Portable Public Container Toilet Cabin Washroom For Construction
Site Accommodation
I. Introduction
container houses are essential living and accommodation facilities
for field construction teams. It is widely used in oil fields,
drilling, oil production, and construction sites.
1. Purpose: the container houses are used in various field
construction and life, effectively improving the work efficiency
and quality of life in fieldwork
2. Performance: humanized design, reasonable structure, strong and
durable, flexible and convenient, complete and high-grade
facilities, anti-seismic, and windproof.
3. Features: the container houses are convenient for
transportation, cost-effective, durable, well manufactured, warm
and comfortable, with complete functions, reasonable layout,
durable, convenient for transportation, luxurious decoration,
humanized design, sufficient indoor space is designed according to
the principle of ergonomics, and the indoor color is harmonious.
Spacious, comfortable, beautiful, durable, and has a good seal,
insulation, rain, cold effect is good.
II. Design description
| 1 | Building area | 36 sqm | | 2 | Capacity | 20 people | | 3 | Sitting toilet | 10 | | 4 | Urinal | 5 | | 5 | Washbasin | 4 |

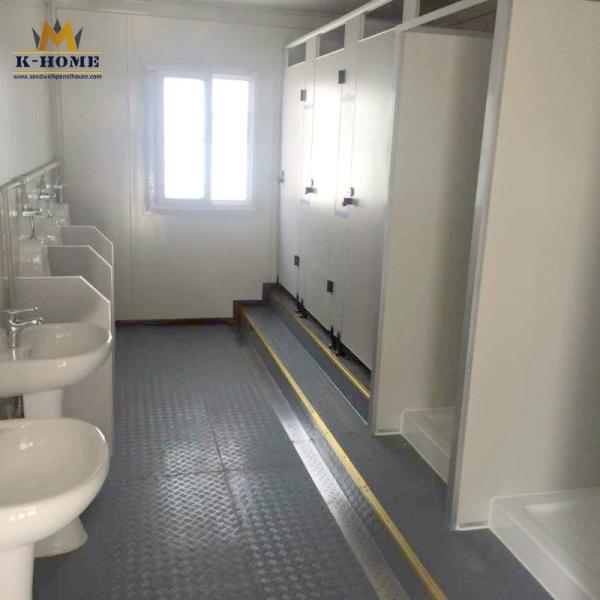

III. Product show
IV. Main material specification
| Part 1: Roof System (roof plate + roof purlin + roof insulation +
ceiling) | | I | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; | | Strong and corrosion resistance. | | ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square
tube + 5pcs 40x80mm Galvanized Square tube; | | Firm, strong corrosion resistance and has a long service life. | | iii | Roof Insulation | 50 mm glass wool insulation material; | | Fireproof A1 class, non-combustion. | | iv | Ceiling | The ceiling is 0.4 mm thickness shaped steel plate; Pre-coated and
color coated; | | Strong and corrosion resistance. | | Part 2: Steel Frame (Corner post + column + beam + bolt) | | I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by
machine after repeatedly polished; | | Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size: 160* 160* 2480mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 3680* 60* 160 mm; | | Size 2: 5680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. The color is
glossy and can last for a long time. | | iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 2680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | v | Bolt | High strength galvanized steel bolt; | | To fix the Corner Connection Part and beam, Corner Connection Part
and column; | | Firm, strong, and corrosion resistance. |
V. Delivery
|
