Two Story Sandwich Panel Container House Good Strong And Good
Looking
I. Introduction
The sandwich panel container house can be easily transformed into
various living spaces. They can be connected or stacked to form
different building modules. They not only make effective use of
space but also save human and material resources.
Experts believe that the development of "residential containers"
may be an effective way to solve the housing problem of low-income
people in the future when the supply of affordable housing is
relatively tight or the buyers are limited.
Overpopulation and continuous migration have become signs of modern
life, and the invasion of natural disasters has left many people
homeless. In short, the traditional concept of housing has been out
of time, which also inspired people to think about their own living
space.
Building a house with containers is one of the new ideas. It is
green, time-saving, labor-saving, very flexible, and changeable.
Compared with traditional housing, it can provide more choices for
residents. Individuals, families and even a community can get what
they need.
II. Design description
This beautiful two-story building is designed with 6 sandwich panel
container house units. It is for a family that needs 3 bedrooms, 3
bathrooms. There are also plenty of space for the kitchen, dining ,
and living room to have fun. One the first floor, there left a room
to the storage, or to be a study room. The master bedroom is on the
second floor that has a walk-in closet. There is still spaces to
place a bathtub to let people enjoy a comfortable bath.
III. Layout description
| 1 | Building area | 108 sqm | | 2 | Land area | 54 sqm | | 3 | Bedroom qty. | 4 | | 4 | Bathroom qty. | 3 | | 5 | Master Bedroom size | 3575 mm * 2850 mm | | 6 | Three single bedrooms size | 2800 mm *2050 mm | | 7 | Bathroom size 1 (two sets) | 1600 mm * 1570 mm | | 8 | Bathroom size 2 | 2445 mm * 1630 mm | | 9 | Kitchen room | 2850 mm * 2000 mm | | 10 | Dining and Living room | 6000 mm * 3000 mm |

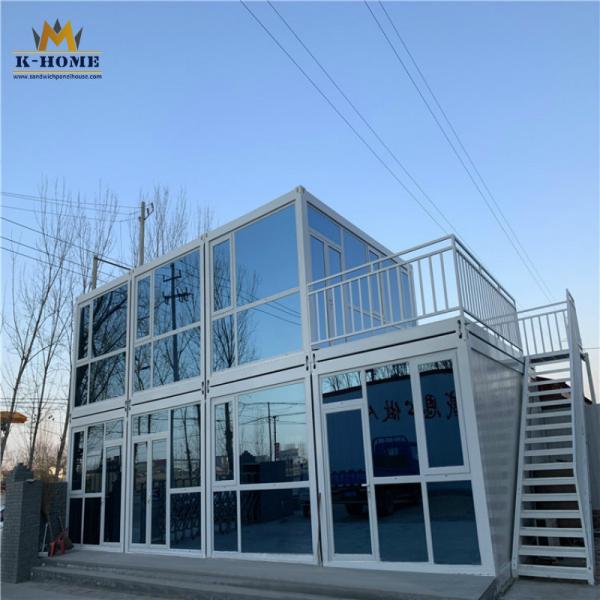

IV. Project show
V. Main material specification
| Part 1: Roof System (roof plate + roof purlin + roof insulation +
ceiling) | | I | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; | | Strong and corrosion resistance. | | ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square
tube + 5pcs 40x80mm Galvanized Square tube; | | Firm, strong corrosion resistance and has a long service life. | | iii | Roof Insulation | 50 mm glass wool insulation material; | | Fireproof A1 class, non-combustion. | | iv | Ceiling | Ceiling is 0.4 mm thickness shaped steel plate; Pre-coated and
color coated; | | Strong and corrosion resistance. | | Part 2: Steel Frame (Corner post + column + beam + bolt) | | I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by
machine after repeatedly polished; | | Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | | Feather: Safe, strong and corrosion resistance. | | The color is glossy and can last for a long time. | | ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size: 160* 160* 2480mm; | | Feather: Safe, strong and corrosion resistance. | | The color is glossy and can last for a long time. | | iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 3680* 60* 160 mm; | | Size 2: 5680* 60* 160 mm; | | Feather: Safe, strong and corrosion resistance. The color is glossy
and can last for a long time. | | iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 2680* 60* 160 mm; | | Feather: Safe, strong and corrosion resistance. | | The color is glossy and can last for a long time. | | v | Bolt | High strength galvanized steel bolt; | | To fix the Corner Connection Part and beam, Corner Connection Part
and column; | | Firm, strong and corrosion resistance. |
|
