Low Cost Color Steel Sandwich Panel Prefab house for Temporary
Building
Ⅰ. Product Description

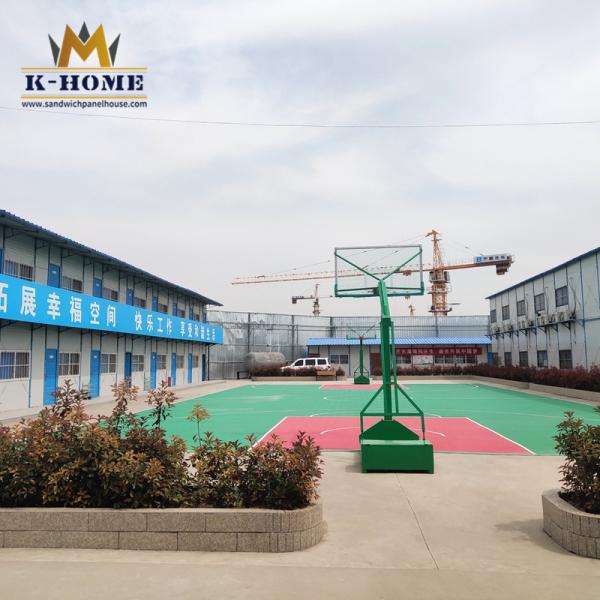

Temporary sandwich panel houses are very popular at railway
construction, construction sites, mining and oil construction sites
at low prices and fast installation. Such houses can be found
everywhere in the world.
The sandwich panel prefab house is a light steel as the skeleton,
the sandwich panel as the enclosing material, and the standard
modular series for space combination. The components are connected
by bolts, Can be assembled and disassembled quickly and easily.
| Prefab House Material List | | Part I. Main Parts | Spec. | | 1 | Wall Panel (50mm Rock Wool sandwich panel) |
Wall Panel: 50mm 50kg/m3 rock wool Sandwich Panel,( 0.40mm steel plate on both sides)；
Color is common color: White gray | | 2 | Roof Panel (50mm Rock Wool Sandwich Panel) | Roof Panel: 50mm 50kg/m3 rock wool sandwich panel (0.40mm blue steel plate on both sides)
Color is common color: Blue | | 3 | Steel Frame (Roof Truss) | Steel column: Double C80×40×1.8 Herringbone
beam:C80×40×1.8,C50×40×1.8; Horizontal beam:C80×40×1.8,
C50×40×1.8; Grade beam:C80×40×1.8; Ring beams:C80×40×1.8: Roof
purlins:C50×40×1.8; Lateral support:L40×3.0; Control rod:φ8 | | 4 | Ceiling | 7.5mm Plasterboard Ceiling Size: 600*600mm Include: 1. PVC board 2. Painted keel 3. Side keel 4. Coated iron wire
Features: 1. Good sound insulation and thermal insulation performance 2. Proper adjustment of indoor humidity | | 5 | Stairs | Include: 1.Small Terrance 2.Armrest 3.Stair Size:1000mm Wide Material: Steel Structure and coat Feature: 1. Durable 2. Not easy to paint off | | 6 | Walkway Board | Material: Steel frame and Coat Size:1m wide Feature: 1.Durable 2.Not easy to paint off | | 7 | Metal Railing | Surface tube 40 × 80 × 1.2, bar 32 × 32 × 1.8 Vertical dry 19 × 19 × 0.8,
Column 40 × 40 × 1.2 Material:Steel structure | | Part II. Windows, Doors and Accessories | | 8 | Door | Include: Steel door, Lock Size:800*2000mm Material: Iron and paint | | 9 | Window | Size:930mm*1100m Include: Steel plastic sliding window with single glass with burglar mesh. Glass thickness: 1.8mm | | 10 | Floor Leather | Material: PVC Thickness: 1.6mm Features: moisture proof; wear resisting; anti-corrosive and thermal insulation. 1.6 mm PVC Floor Leather
Feathers: Excellent appearance, affordable, easy to clean and green
environmental protection; | | Part III. Installation Accessories | | 11 | Sealant | Used for the joints of doors and windows for better waterproof. | | 12 | Structure Adhesive | Used for the reinforcement and seal of the steel frames. | | 13 | Screws | Include: rivets, bolts, drill tail screw; |
|
Ⅲ. About Us
FAQ:
1. The mainly use of the prefab house:
In the normal it's mainly used as temporary building in the site,
such as temporary office, labor accommodation, etc. And in the
recent years, the prefab house is largely use in the resettlement
housing in some disaster area. In 2008, it played a major role on
the resettling the victims after the terrible earthquake on 12th,
May, 2008.
2. How to maintain your prefab house?
2.1: First of all, when the prefab house is installed, it's better
not to make any other changes, like an expansion, adding partitions
or cutting down the walls, or removing screws, and so on.
2.2 : Made the re-paint every 1-2 years after you install it. Such
way can increase its service life and keep beautiful.
2.3 : Finally, do not tie the wire to the prefab house, which will
lead to the prefab house uneven force and easily cause electric
shock accident.
3. How to prepare the foundation for the K style prefab house?
In the normal we will offer you the foundation drawing to prepare
the foundation. In the normal the prefab house is the strip
foundation.
