Construction Sites Portable Accommodation Container Manager Kitchen
And Container Dining Hall
I. Product Introduction
Building a house with containers is one of the new ideas. It is
green, time-saving, labor-saving, very flexible, and changeable.
Compared with traditional housing, it can provide more choices. The structure of the portable container house is the overall
structure or assembly structure, but its integrity is relatively
strong. It divides the house into a small unit, which is basically
the size to assemble into how many large houses. The more humanized the description of the container activity room
is, the more comfortable the living and working conditions are, and
the number of rooms can be added or reduced at any time, which is
convenient and flexible. It is widely used in construction sites, warehouses, military, and
foreign-funded enterprises. It can be also used for kitchen, dining
hall, storage rooms, toilet rooms, shower containers, etc. II. Product description

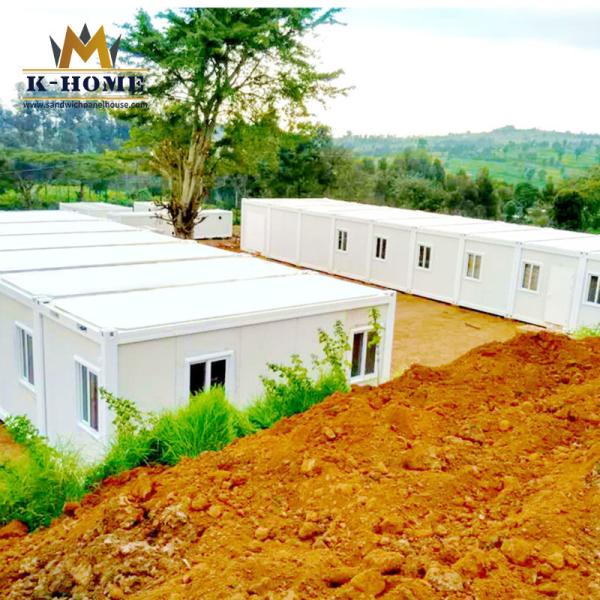

This prefabricated container accommodation house is designed for
construction sites managers' kitchen and dining hall. It also could
be used for the telecom industry, oil and gas field, etc.
Layout description
| 1 | Building area. | 216 sqm | | 2 | Total capacity | 84 people | | 3 | Kitchen qty. | 36 sqm | | 4 | washing room | 18 sqm |
III. Main material
| Part 1: Roof System (roof plate + roof purlin + roof insulation +
ceiling) | | I | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; | | Strong and corrosion resistance. | | ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square
tube + 5pcs 40x80mm Galvanized Square tube; | | Firm, strong corrosion resistance and has a long service life. | | Part 2: Steel Frame (Corner post + column + beam + bolt) | | I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by
machine after repeatedly polished; | | Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size: 160* 160* 2480mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. | | iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 3680* 60* 160 mm; | | Size 2: 5680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. The color is
glossy and can last for a long time. | | iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray
treated by machine after repeatedly polished; | | Size 1: 2680* 60* 160 mm; | | Feather: Safe, strong, and corrosion resistance. | | The color is glossy and can last for a long time. |
